Single Head Saws

Heavy-duty automatic upcut miter saw with a 16-1/2″ (420 mm) saw blade.

used aluminum cut off saw

Product Overview

Product Overview

Reliable Parts

It has 3 main parts; a 420 mm (16-1/2″) carbide tipped saw blade, pneumatic twin horizontal & vertical clamps, and air guns. There are also infeed & outfeed tables and pneumatic spray mist lubrication systems among optional equipment.

Long Life

It has a heavy-duty construction for long machine life and hydro-pneumatic saw blade feed. Its movable back fence enables us to cut bigger profiles both straight and miter cut.

Safety Features

In operation, when the cutting process is finished, the saw blade moves down to its starting position automatically. Crater-02 A has a special safety purpose; for instance, if the top guard is opened during the cutting process, the saw blade moves down automatically.

Specific Features

  • Heavy-duty construction for long machine life.
  • Hydro-pneumatic saw blade feed.
  • The movable back fence enables us to cut bigger profiles both straight and miter cut.
  • When the cutting process is finished the saw blade moves down to its starting point automatically.
  • If the top guard is opened during the cutting process, the saw blade moves down automatically for safety reasons.
  • Fixed angle adjustments at 15°, 22.5°, 30°, 45°, and 90° via lock pin.
  • Intermediate angles are adjusted via mechanical stop

Optional Equipment

  • Infeed & outfeed table
  • Pneumatic spray mist lubrication system

Accessories

Accessories

HEAVY-DUTY AUTOMATIC UPCUT MITER SAW 18″ (450 MM)

The rising speed of the saw blade can be adjusted as required.

  • A heavy-duty automatic upcut miter saw with an 18″ (450 mm) blade. It has 3 main parts; a 450 mm (18″) carbide tipped saw blade, pneumatic twin horizontal & vertical clamps and air guns.  There are also infeed & outfeed tables and pneumatic spray mist lubrication systems among optional equipment. Heavy-duty construction for long machine life and hydro-pneumatic saw blade feed, which provides additional power…
  • 450 mm (18″) carbide tipped saw blade
  • Pneumatic twin horizontal & vertical clamps
  • Air gun
  • User’s Manual
  • Twin horizontal & vertical pneumatic clamps, clamp pressure adjustable
  • Hydro-pneumatic saw blade feed, which provides additional power enabling you to cut even solid aluminum
  • The movable back fence enables to cut bigger profiles both straight and miter cut
  • When the cutting process is finished the saw blade moves down to its starting point automatically
  • If the top guard is opened during the cutting process, the saw blade moves down automatically for safety purpose
  • Fixed angle adjustments at 15°, 22.5°, 30°, 45°, 90°, and 60° on the right side
  • Intermediate angles are adjusted via a mechanical stop
  • The rising speed of the saw blade can be adjusted as required
  • Built-in handle for turning the table to the desired cutting angle
  • Connection unit for chip collector is provided

There is also a heavy-duty 18” (450 mm) manual up cut miter saw is designed for cutting PVC, aluminum, and wood at desired angles, and it has split type straight cut on 90° left angle.It has cutting at fixed angles (via the lock pin) and any intermediate angles.In addition, the cutting process itself is user friendly by easily pressing down the horizontal metal bar.

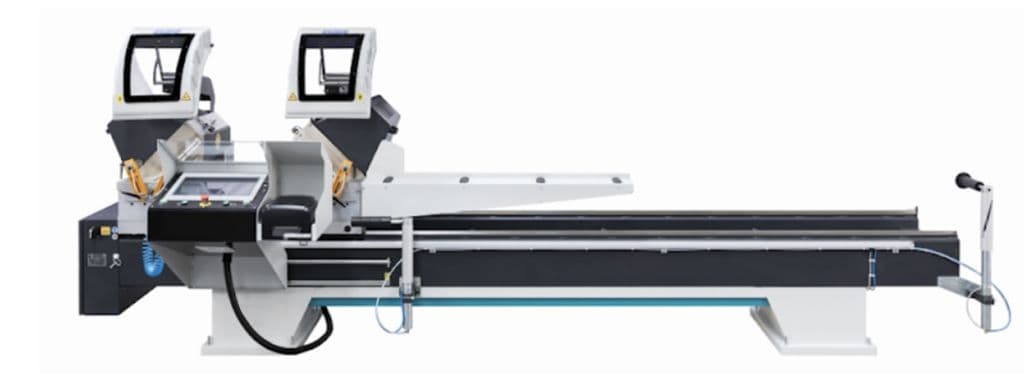

HEAVY-DUTY 18″ (450 MM) DOUBLE HEAD MITER SAW

The heavy-duty 18″ (450 mm) automatic double head miter saw has been designed for straight and miter cut of aluminum & vinyl extrusions and wood. The saw is operated automatically via PLC control, where cut lists can be generated via manual input on the touch screen. Like all our machines this saw has been designed in full conformity with UL Safety Directives and comes with 2-year warranty.

  • Designed for straight and miter cut of aluminum and vinyl profiles at any desired length.
  • Both heads tilt to 45° and 90° angles automatically, intermediate angles are set manually
  • Different versions are available
  • Stroke: min.450 mm (18″), max.4300 mm (169″)
  • The saw blade feed is hydro-pneumatic, and the cutting speed can be adjusted precisely according to the material to cut
  • The operator control panel is touch screen
  • Equipped with features like slicing, entering part quantity and programming
  • Able to cut longer than the stroke

For Ø 450 mm (18″) saw blade size:

  • 45° cutting capacity: 176×200 mm (7″x8″)
  • 90° cutting capacity: 176×285 mm (7″x11″)
  • Stroke: min.450 mm (18″) , max.4000 mm (157″)

TYPICAL APPLICATIONS:

Aluminum Extrusions

Specifications

This saw has also angle adjustments at 15°, 22.5°, 30°, 45°, 90° via a lock pin, and its intermediate angles are adjusted via a mechanical stop. In addition, the rising speed of the saw blade can be adjusted as required. You can have further information about the machine by contacting Scarlett machinery.

420 mm (16-1/2″) carbide tipped saw blade.

  • Pneumatic twin horizontal & vertical clamps.
  • Air gun.
  • User’s manual
