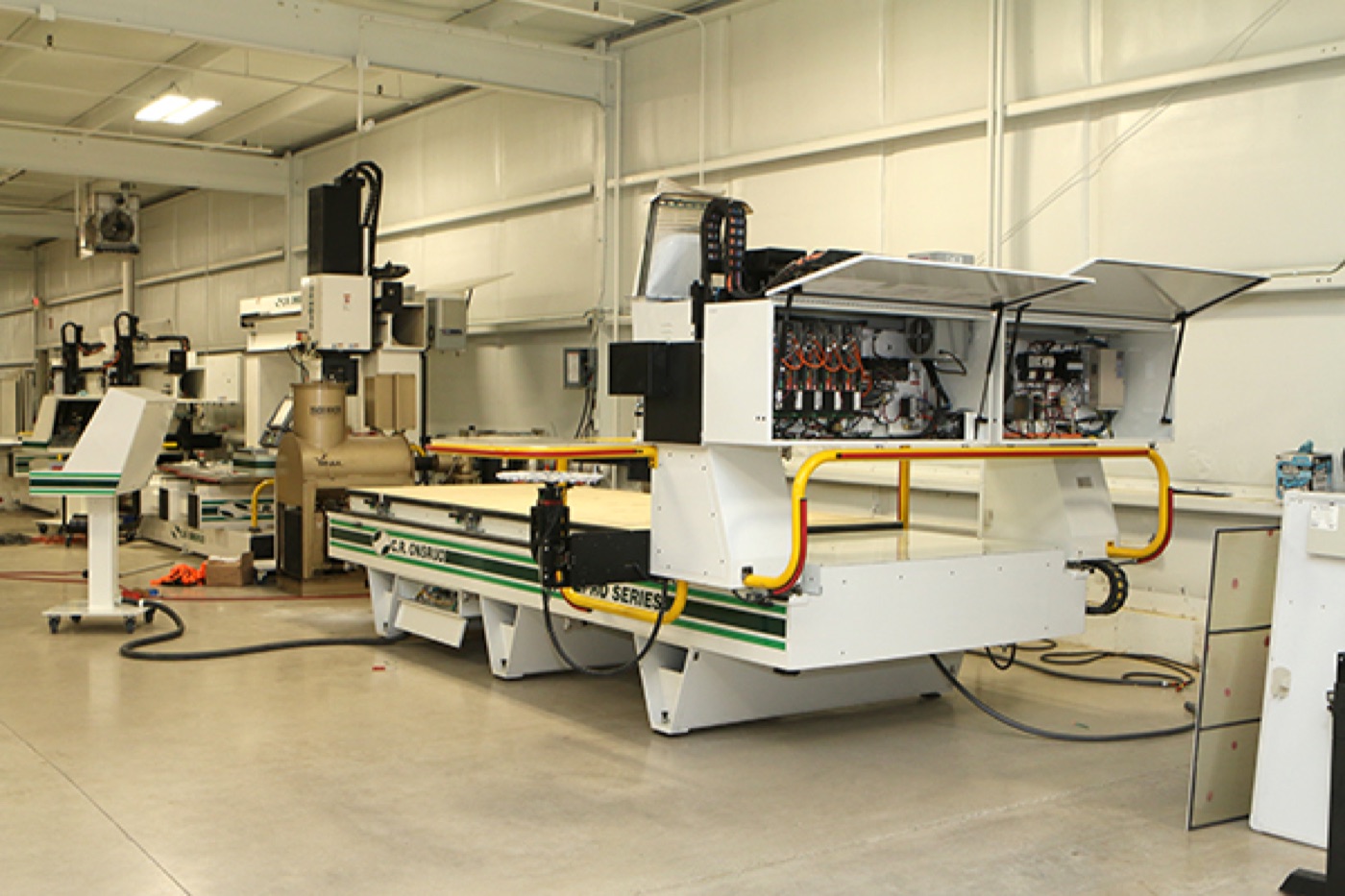

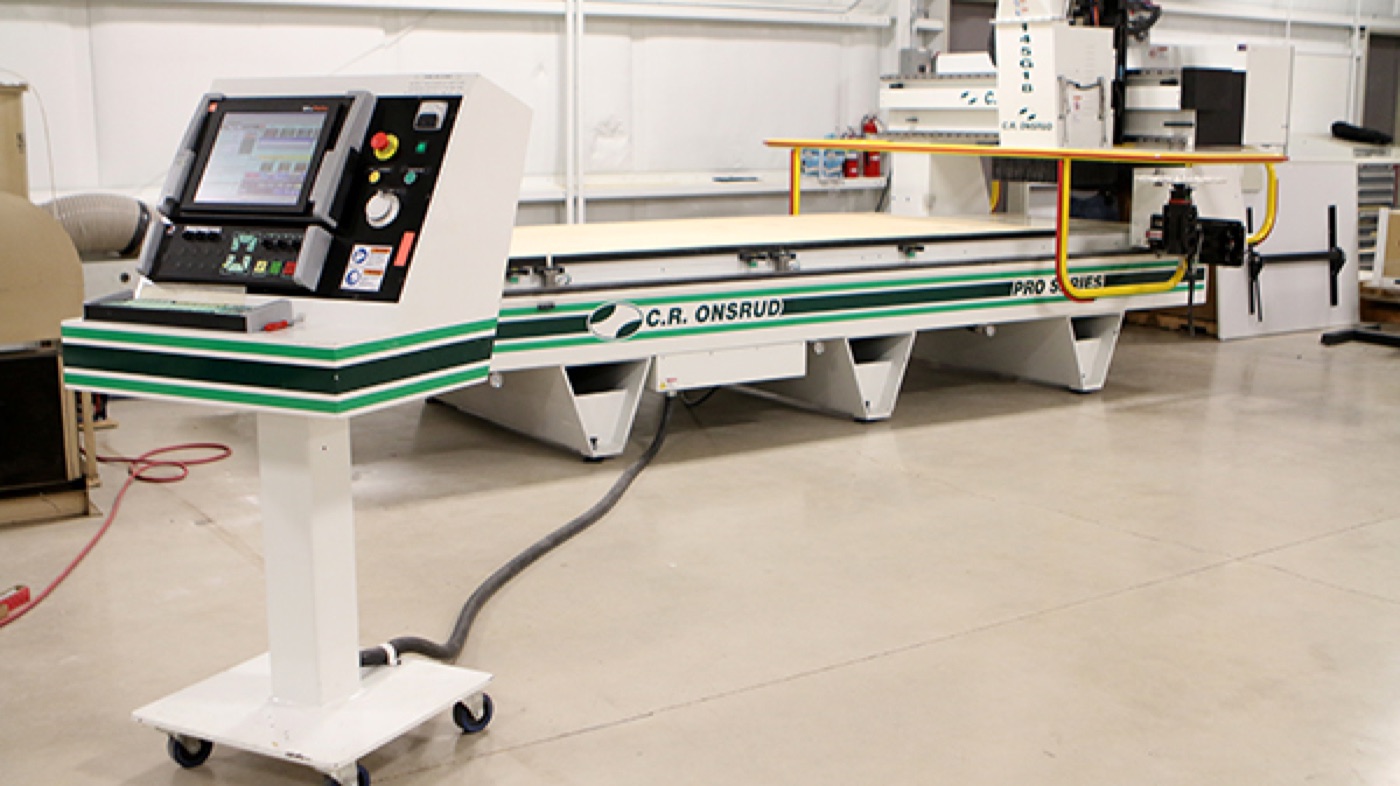

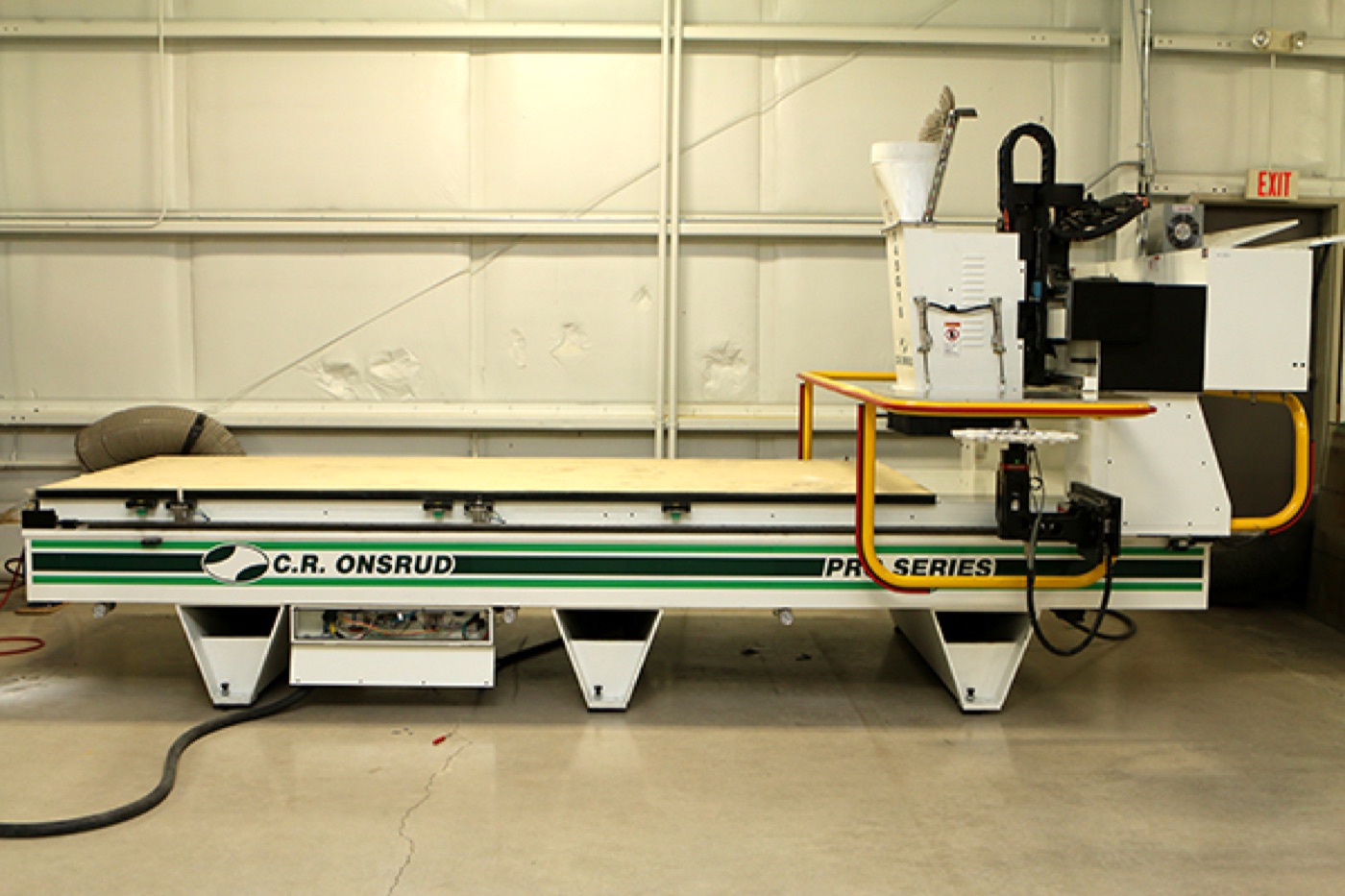

Used C.R. ONSRUD MODEL 145G18 “Panel Pro Series” CNC ROUTER 2012
THIS MACHINE HAS BEEN SOLD
Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base, & Thermal Heat Treated, Stress Relieved, & Normalized Steel Bridge; Dual Support, Dual Drive, Moving Gantry, Fixed Table Design with standard 2,500” per minute machining speed, full 3-D capability, oversized precision ball screw drives for Z & Y axis, case-hardened, oversized, precision ground, helical rack & pinion drives for X axis with forced-air continuous rack cleansing system & anti-contamination shielding, precision linear profile guide ways, centralized lubrication system, SINGLE FIXED TABLE, w/3 independently controlled vacuum zones & full table coverage. Each zone has low vacuum sensing safety shut-off with override capability. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck through or dedicated spoil boards, & is easily modified for the use of pod systems. Moving gantry is surrounded by a pressure sensitive safety-stop / emergency-stop bar.
18 HP Spindle – 4-Pole, 13.5Kw, 18HP – 24,000 RPM fully programmable & reversible, variable speed, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates w/override capability,

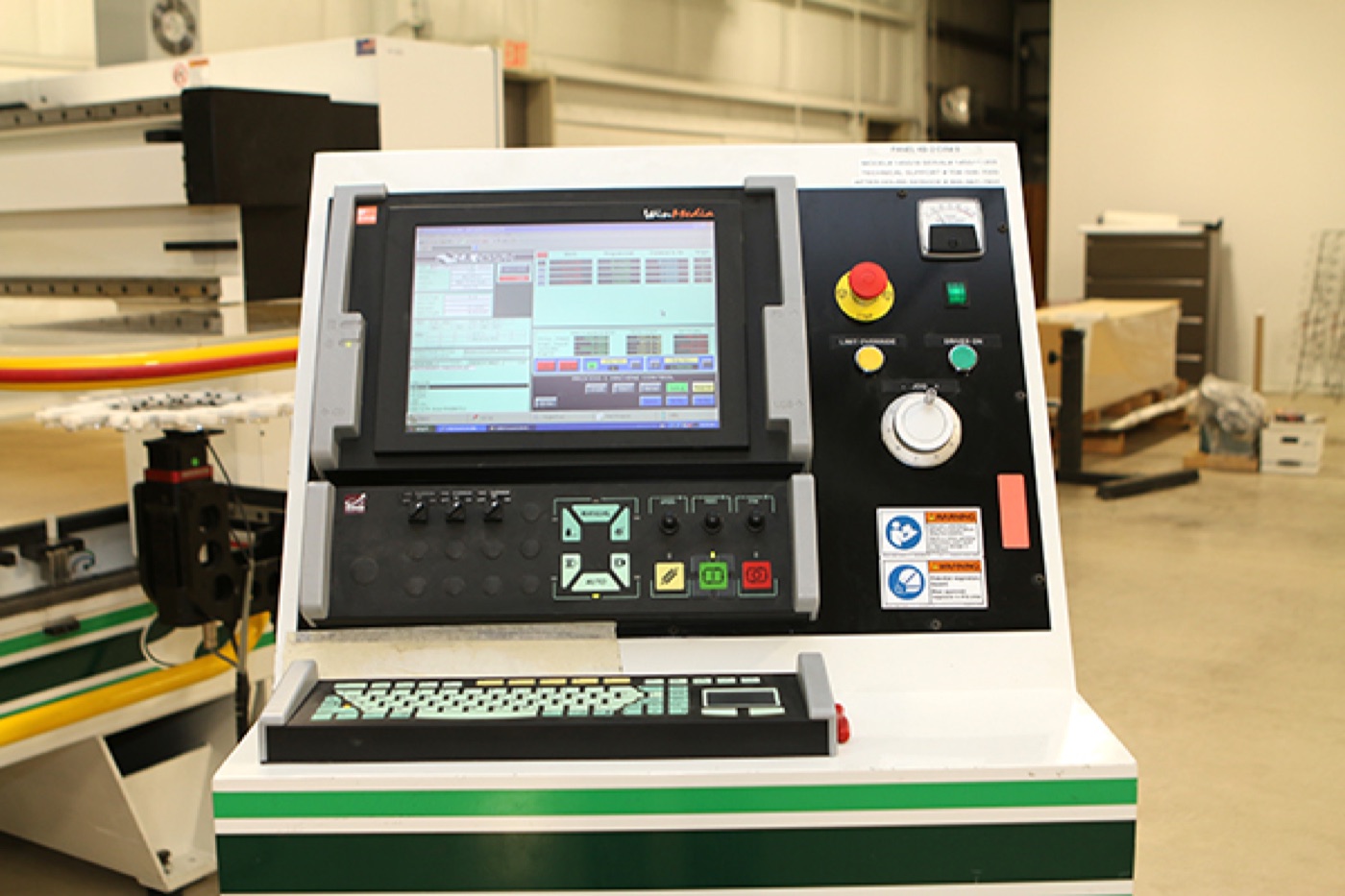

OSAI PC Front Series 10/510i System – OSAI PC Front w/High Res touch screen, network capability, PLC Machine Controller, plus adds OSAI Digital Drives, Amps, and Servos (requires 460V out isolation transformer)
25HP Dekker Vacuum Pump
CR ONSRUD High-Flow Universal Vacuum Table System – CR ONSRUD High-Flow Universal Vacuum Table System
Single Plumbed Vacuum Zone – (Includes Pneumatically Controlled Vacuum Switch) 11-inches of Z stroke – 14” under bridge clearance & 11” Z axis stroke.
5×12 – Suck-Through Spoil Board – Default Table
Continuous Production High Speed – High Accuracy Digital Brushless AC Servos – Larger servos, drives, & amps for faster feed rates, heavier cutting, & increased accuracy
Pneumatic Controlled Vacuum Table Switch – (One for each table or zone). Controlled via convenient machine-mounted pull switches on the machine.
Standard Centralized Greased Lubrication
Integrated Dust Transition System – Integrated Dust Extraction hood pulls chips away from the spindle’s nose & up a separate chamber & hood to effectively remove chips from the machining process. (Appropriately sized 6” dust transition also provided for connecting to your dropped-in flex hose)
12 Tool – Dynamic Automatic Rotary Tool Changer Upgrade – Upgrade to Fully Servo controlled instead of Stepper controlled or Rack-Style tool changers. Design eliminates misfires & quickly changes between 12 different tools – Able to Store Aggregates. You may require C-Axis or Aggregate Tool Changer option to hold some larger or non-standard aggregates – (w/2 free HSK-63 tool holders)
Auto Tool Length Touchpad Digitizer – Fully Integrated to Machine, may not work with custom or non-standard tooling, or some custom profiles.

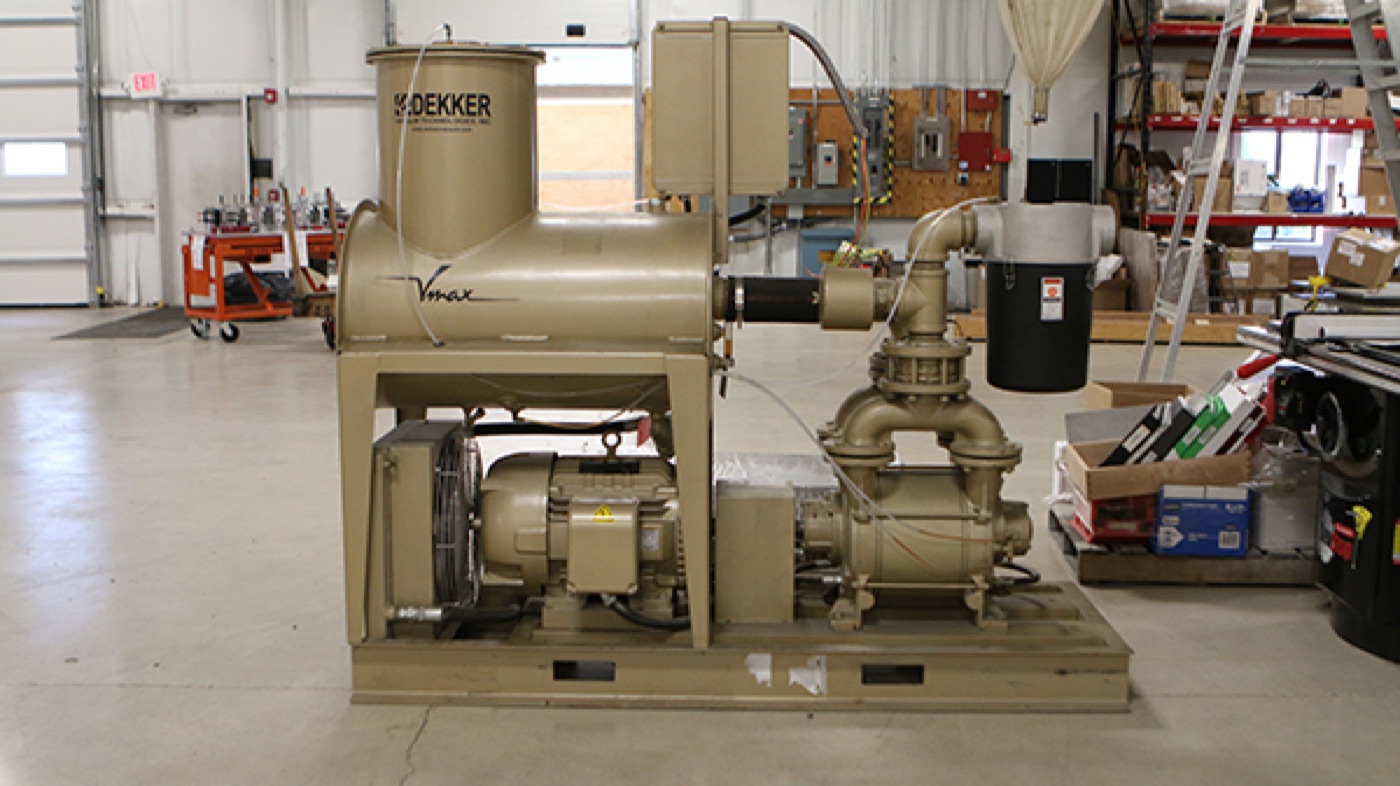

DEKKER VACUUM PUMP – Vmax 25 HP
- The only system on the market with a full 3-year warranty
- Patented high-efficiency DX-5 separator eliminates oil carry over concerns
- Rugged, high quality, industrial system offering years of trouble free operation
- Extended life seal fluid is not used as a lubricant. Change interval is not critical resulting in a minimum of 10,000 hours of continuous operation
- Direct drive at low speed (1750 RPM) eliminates the use of V-belts resulting in very low maintenance and zero downtime
- Extremely low operating noise level makes this system desirable in today’s workplace
- Continuous operation over the full vacuum range without overheating
- Carry over of soft solids and/or minimal amounts of liquid does not cause damage to the internal parts of the pump
- Electrical control panel is standard
- Air-cooled design is standard with water-cooling available at no extra charge
- Now available with optional Variable Frequency Drive resulting in lower power consumption
