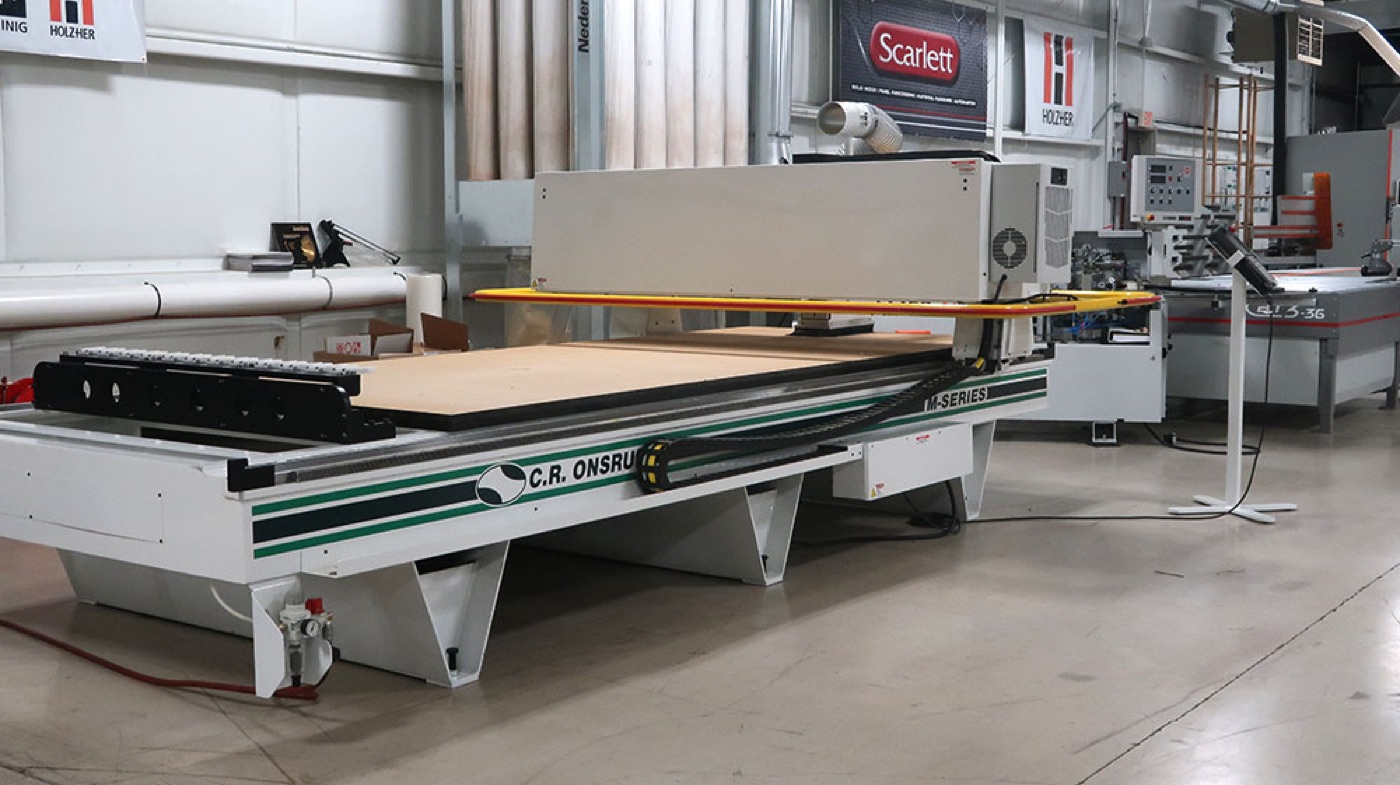

Designed, FEA Engineered, and Manufactured in America, utilizing steel construction.
Dual supported gantry driven on both sides with independent servo motors and drives. This dual channel design enhances accuracy & rigidity. The moving gantry, fixed table, design allows for up to 2,000 ipm programmable feed rates. Control system comes standard with full 3D capability (multi-axis interpolation).
Precision linear motion systems on all axes. Standard with Onsrud Universal High Flow Vacuum Table System suitable for flow-through spoil boards, dedicated fixtures, or easily upgradable for pod systems.
CR ONSRUD High-Flow Universal Vacuum Table System – Includes: oversized 4” intake manifold, high-capacity vacuum plumbing, high-flow 45mm grid waffle patterns, with Onsrud’s Unique High Flow Vacuum Inlets, to offer maximum vacuum airflow & absolutely minimal airflow restriction for excellent part holding.
High Flow Vacuum Zone – Actuated via Manual Ball Valve 9-inches of Z stroke – 9” under bridge clearance & 11” Z axis stroke from spindle nose in retracted position to
table 5×12 – Flow-Through Spoil Board – LDF table top to be used as replaceable sacrificial spoil board.
FANUC 0i Handheld Machine Controller System – Industrial CNC Machine Controller with Fanuc iPendent HMI w/High Res touch screen. Fanuc 0i is not a PC with a control card but is a dedicated Industrial PLC designed to control CNC motion, for maximum reliability and performance. Network capability, plus adds Large FANUC Digital Drives & Servos. Handheld interface offers the convenience of being able to move freely around the machine while controlling functions. Allows for Full remote diagnostic troubleshooting capabilities. Adds m-code controlled vacuum zones (if equipped with Vacuum Table Option). (requires 460V out isolation transformer).
12 HP Spindle – 4-Pole, 9Kw, 12HP, HSK-63F – 24,000 RPM fully programmable, variable speed, reversible, HSK 63F tool interface, quick-change cartridge style spindle, with air blast; capable of routing & drilling, with programmable feed rates with override capability.
Aggregate Anti-Rotation Retention Ring – Attaches to spindle underside. Gives spindle the ability to pick up aggregates from ATC. (Included In Automatic Aggregate Tool Changer &/or C-Axis Ability options)
Integrated Dust Transition System – Integrated Dust Extraction hood pulls chips away from the spindle’s nose & up a separate chamber & hood to effectively remove chips from the machining process. (6in dust transition also provided for connecting to your dropped-in flex hose) – **consult your machine specific footprint for specific connection recommendations based on your options.
Automatic Oil Mist Lubricator with Separate Air Blast – Combo of: M-Code activated spray of fine oil mist on the tip of tool, for cooling purposes. Additional separate air blast nozzle controlled by separate M-Code. Produces a continuous output of metered lubricants. Air-driven, positive-displacement pumps meter each drop of lubricant. Can manually adjust output flow. Combines lubricant and air in the Co-Axial Nozzle to keep atomization and distribution of the liquid consistent. Separate Air Nozzle is either on or off.
15kVA Isolation Transformer – strongly recommended for up to 12 HP models as an electrical noise filter. 6-tap, non-compensating transformer can be specified for your voltage in/machine voltage out
Standard Manual Greased Lubrication – Bearing Blocks and Ballscrews have standard zirk fittings for easy application of grease
M Series Dust Collection Center Stanchion Kit – (includes flex hose, 1 steel stand, & clamps to connect dust transition to your collector above the center of the spindle plate)
12 Tool – Fixed Rack A.T.C – Rack style tool changer quickly changes between 12 different tools.
Stocking Program Standard Factory Pre-Wire & Retrofit Kit – This special prewire & retrofit kit is available only on standard stock machines and provides a combination prewire for the following options:
Programmable Air Blast Automatic Oil Mist lubricator Automatic Tool Length Touchpad Digitizer 9 Spindle Drilling Block Retrofit Automation Intelligence
Note: none of these options are installed on the machine, the machine is just ready to have the option installed with the appropriate wiring in place. This will allow you to retrofit any one of the above items at the current price of the option on a new machine, at a later date or with this order. A retrofit may or may not still be possible without this kit. If the retrofit is possible, the pricing may be more expensive without this option. Technician labor, travel & lodging expenses are additional.
Extra HSK-63 Standard Tool Holders – 1” collet capacity (each with chuck nut)
Air Conditioned Electronics Cabinets – Recommended for extreme environments & some non-temperature controlled workplaces. Option replaces the standard heat exchanger system.
Additional Linear Way Sealing – The additional linear way cover strips and seals add extra protection for materials where extra contamination protection is needed beyond the standard application. This kit is recommended when conductive materials are being machined or materials that may be particularly hard on linear guideways. Note: does not include bellows type covers
QPS-CSA Certification – CSA Certification and Machine Label
25HP Dekker V-Max Liquid Ring Vacuum Pump – 410 CFM System @ 29”/hg; 696 m3/hr @982Mb. Pricing applies for 460V models; other voltages are an additional charge. Change Dekker Pump to 575V – Dekker Pump(s) will be ordered as 575V
Pneumatic Controlled Pop-Up Perimeter Positioning Pin – for easier sheet placement Solenoids for Pop-Up Pin Control
Auto Tool Length Touchpad Digitizer – Measures tool length and records in machine tool length tables, may not work with custom or non-standard tooling, or some custom profiles. CR Onsrud Startup Tooling Credit – Good towards your various sized collets, collet cleaner kit, spoil board surfacing cutter, vacuum tape, any other necessary cutters, etc.
Onsrud Digital Bench-Top Tool Setter – allows you to measure tools off-line in seconds and be ready for the next job while the machine is still in production. CR Onsrud Premium Tool Maintenance Package - - Torque Wrench and key
– Premium tool clamp stand (allows for quick tightening and loosening of the chuck nuts on tool holders.) – Collet Cleaner and T-9 - Collet Brush Kit - HSK Spindle Wiper
– Clamp group insertion tool (for use with spindle cleaning and maintenance)
