Doucet Challenger Award Winner 2018 for their Automated Clamp Carrier System ALYX

Doucet Challenger Award Winner 2018

Automatically load and unload glued panels with synchronized machinery

Said to improve production and reduce labor costs, Doucet Machineries’ ALYX is an automated loader system for high volume gluing application, panel preparation, and loading and unloading of the clamp carrier. The ALYX automatic loader is a 2018 IWF Challengers finalist.

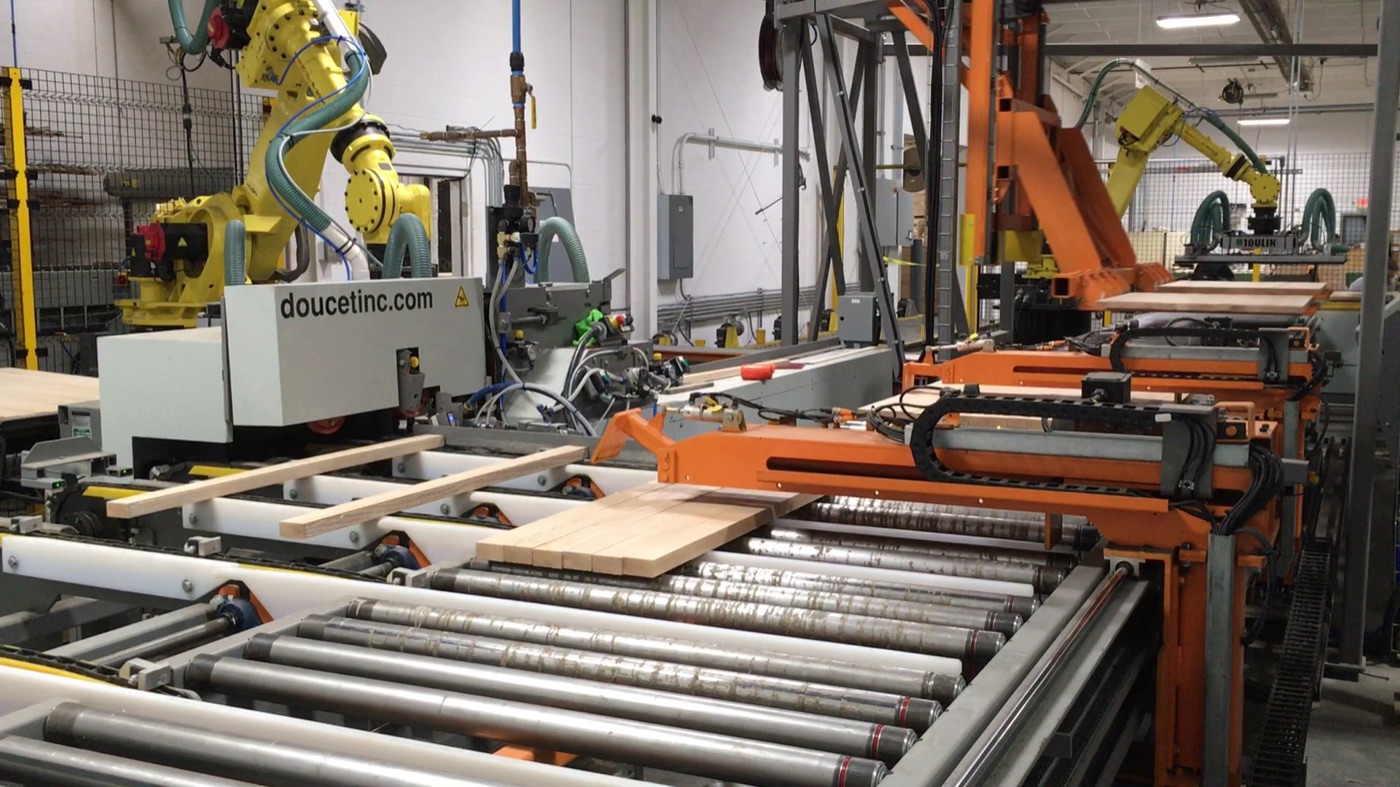

The company says the ALYX’s modular design allows it to be added to an existing clamp carrier or to be integrated in Doucet’s SRX hydraulic clamp carrier. Clamp carriers usually feature a rotating frame that clamps together glued panels allowing them to dry. The ALYX is divided into several sections starting with the lateral chain feeder, which receives the slats and guides each piece through to the next section, the glue application device.

The glue applicator and measurement device is where the width of the slats are calculated ensuring that the last slat does not receive glue to create a dry joint in the panel. A dry joint is said to create air flow between panels and a building’s structural wall by allowing for expansion and contraction of the exterior panels. It also enables the inside air pressure to be matched to the pressure outside to resist wind driven rain and other factors that could drive water into the building’s walls. If rain does make it through, the dry joints allow the water to drain, evaporate, or dry.

The slats are edge glued through an extruder instead of a glue roll which the company says will save 20 to 30 percent of glue. Much like a hot glue gun, an extruder pushes the glue out from a barrel onto the wood. A UV sensor follows the extruder to detect the UV additive in the glue and will emit a warning to the operator if no glue is detected.

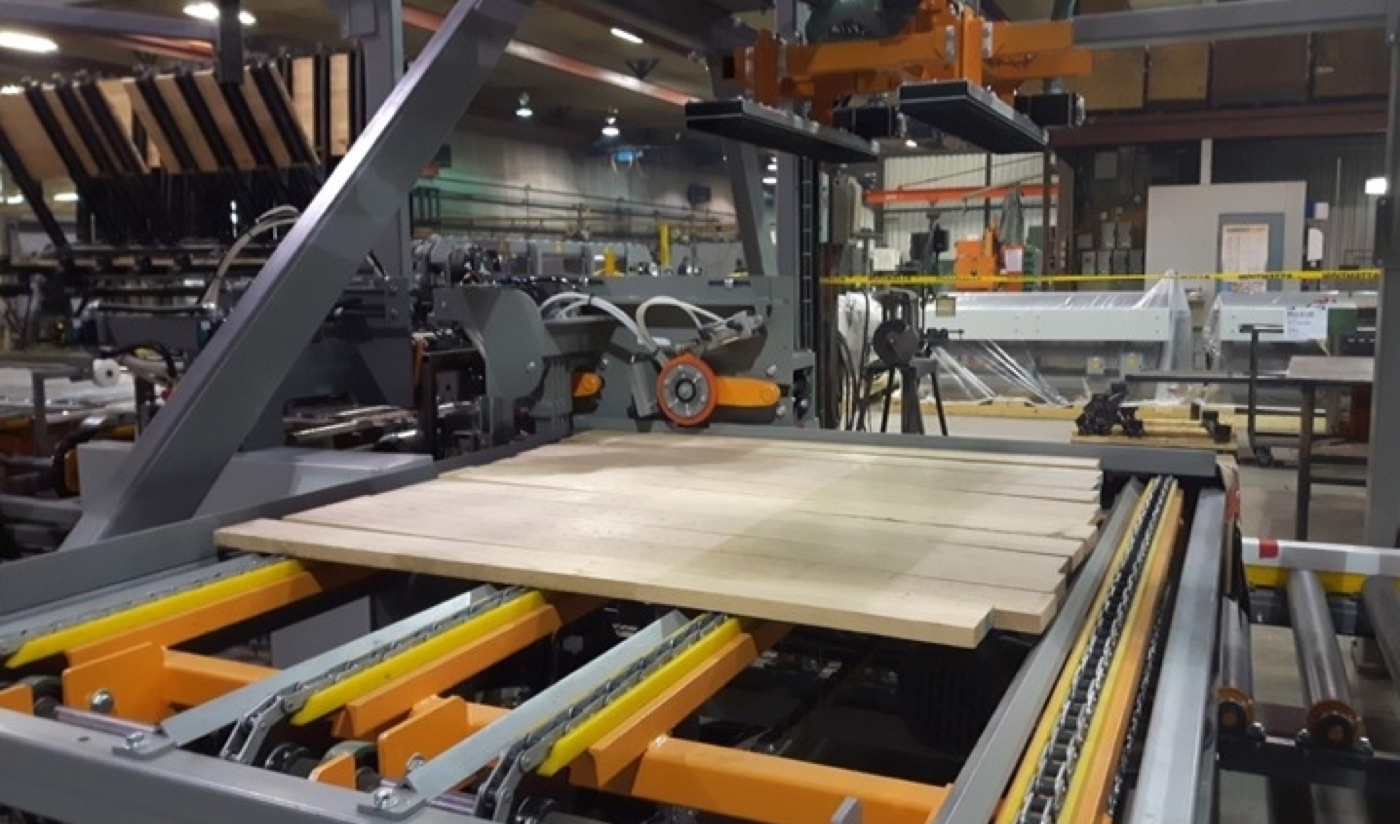

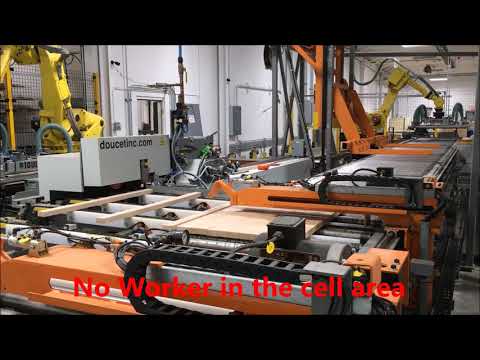

The panel forming zone is where all slats exiting the glue applicator are guided toward a transfer mechanism, which then side-shifts the slats against one another onto the panel accumulation conveyor until the panel reaches the desired width. This conveyor features two moving holders that move the completed panel to allow assembly of the second panel. While ensuring the panels maintain a fixed panel end, the holders move them along the accumulation conveyor toward the clamp carrier.

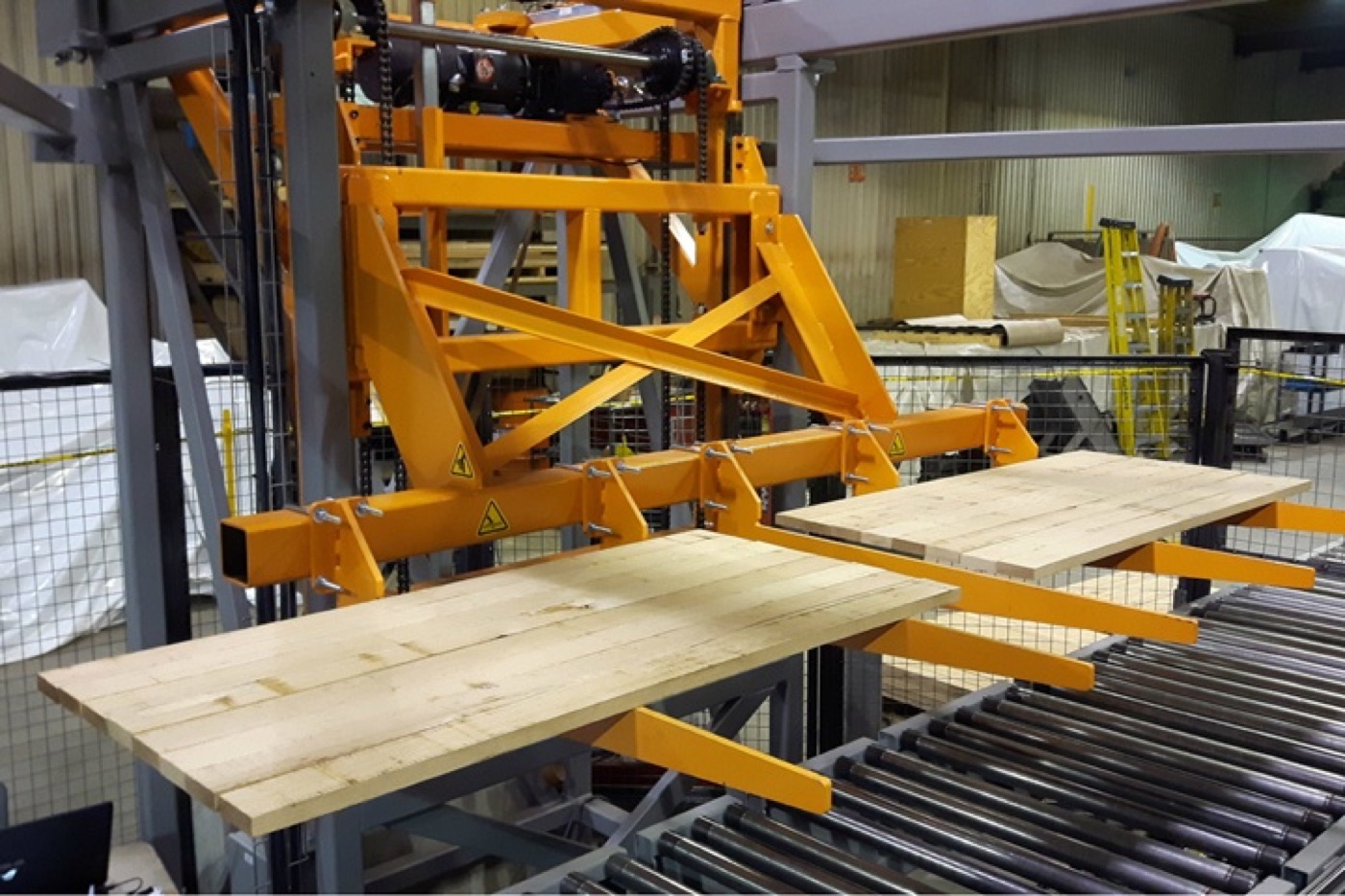

The arms of the two-axis automatic loader moves between the clamps of the carrier in order to load freshly glued panels into the clamps and unload dried panels onto the exit conveyor. Movement of the automatic loader is synchronized with the clamp carrier sequence so loading and unloading is done while the clamps are in a horizontal position.

The final section is the motorized exit conveyor where the dry panels are removed from the loading area.

If you have an application where this could be used, Contact Scarlett Inc. for more information.

sales@scarlettinc.com

616-871-9889

 ALYX – Clamp Carrier Automatic Loader, We explained the regular process of edge gluing and its disadvantages. Today we reveal why you need the Automatic Loading system – ALYX.

Benefits of the ALYX Automated Loading System:

  • Rapid production: The complete cycle time for gluing and loading is 80 seconds or less with only one operator at the panel preparation position, another partial operator is managing the material input and output
  •  Less Intensive Labor: The operator tasks are much less physical than before as their new tasks is now oriented on the value-added tasks like color matching of staves, grading of incoming staves before being glued
  •  Reduced Glue Consumption: End user could expect savings on glue consumption as injection glue typically requires less glue than roller type application by 20% to 30%
  •  Reduced Panel Cleaning: Having less glue squeeze out on the dry panels results into more productive downstream operations like sanding and planning and increasing abrasive lifespan
  •  Reduced Maintenance: Systems currently in operation are showing a drastic drop in cleaning hours required on the clamp carrier. As an example, a system used continuously (24 hours) 5 days a week required clamp screw cleaning cycleonce every 3 months compare to once a week with an older system
  •  Rapid Return on Investment: End users in the cabinet door industry have estimated a return on the investment between 18-19 months
  •  Dramatic Reduction in Labor: End users in the stairs industry have reduced their operation from 3 employees on one shift to one employee and 24 hour operation, increasing the quantity of stairs produced by over 40% with same labor costs involved and 30% glue savings.
